工業除塵器的節能設計及經濟分析畢業設計

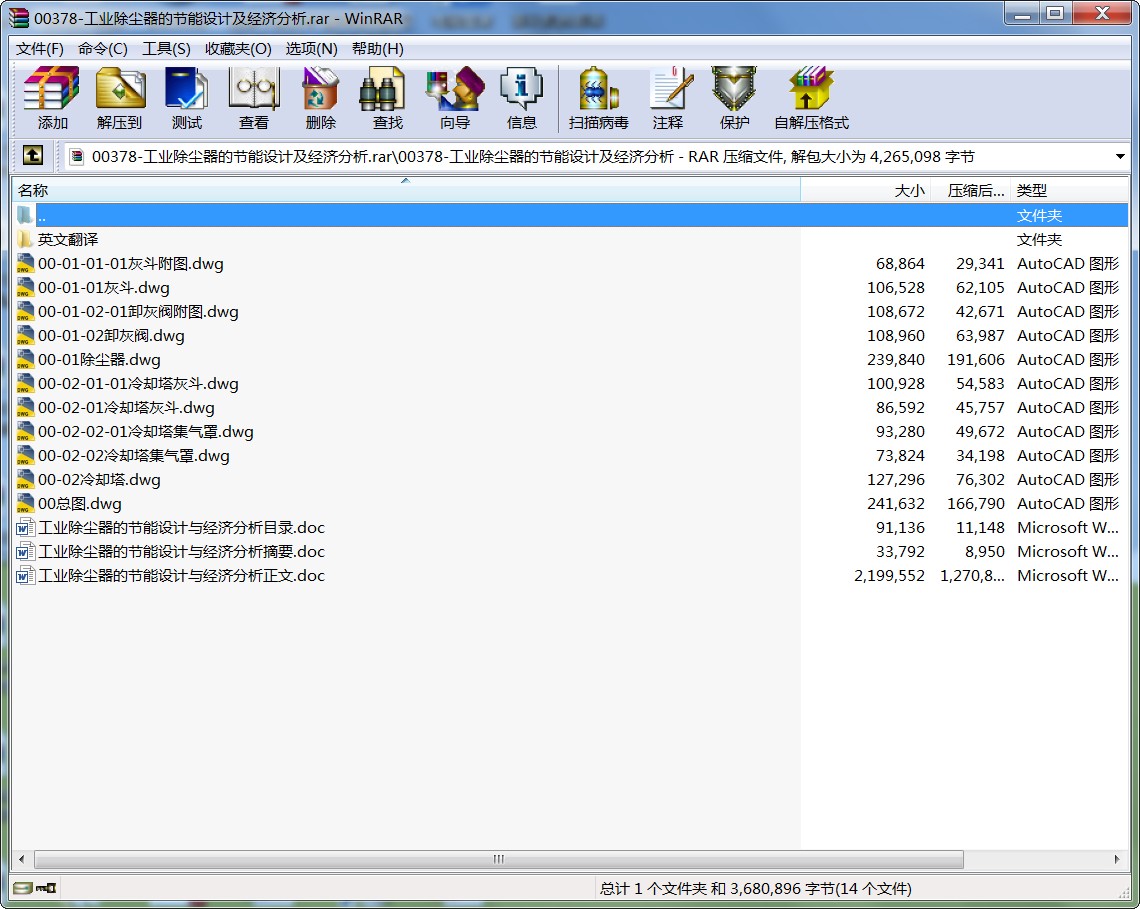

- 文件介紹：
- 該文件為 rar 格式（源文件可編輯），下載需要
20 積分
-
- 00378-工業除塵器的節能設計及經濟分析.rar
目錄
第一章 緒論 1
1.1環境保護與可持續發展 1
1.1.1環境與環境問題 1
1.1.2 可持續發展 2
1.2 對大氣的結構及組成的認識 3
1.2.1大氣圈及其及結構 3
1.2.2 大氣污染物 4
1.2.3 鍋爐大氣污染物排放標準 6
1.2.4 污染與健康 7
1.2.5 大氣污染的綜合防治 8
1.3 任務的提出與意義 10
1.3.1 設計要求以及基本參數 10
1.3.2 設計內容包括 10
1.3.3 選題的意義 10
第二章 除塵設備的分類及其型號的選擇 11
2.1除塵設備的概述 11
2.1.1 除塵器的概念 11
2.1.2 除塵器的分類 11
2.2 各種除塵器原理 12
2.2.1 機械式除塵器 12
2.2.2 靜電除塵器 19
2.2.3 濕式除塵器 20
2.2.4袋式除塵器 20
2.2.5 復合式除塵器 26
2.2.6各種除塵器的性能比較及其型號的選擇 26
2.3 確定方案 27
2.3.1濾袋速度的選擇 28
2.3.2 清灰方式的確定 28
2.3.3 濾袋形式的確定 31
2.3.4 過濾方向的確定 31
2.3.5 進風口位置的選擇 31
2.3.7濾料的選擇 33
第三章 除塵器的設計與計算 37
3.1參數的計算 37
3.1.1 計算需要的過濾面積和袋室數目 37
3.2 風機的選擇 43
3.2.1 風機性能的比較 43
3.3 冷卻塔的設計 45
3.3.1 冷卻方式的選擇 45
3.3.2 冷卻塔主要參數的計算 48
3.4 除塵器卸灰系統設計 49
3.4.1 除塵器卸灰閥的設計 49
3.5 除塵器的基礎的設計 50
3.6鋼結構部分的設計 50
3.7 屋架的設計 51
3.8 房子主體結構設計 51
第四章.施工及其焊接要求 53
4.1施工要求 53
4.2 環保鋼結構手工電弧焊焊接施工 53
4.2.1對焊接有關人員的要求 53
4.2.2開坡口 53
4.2.3質量要求 53
4.2.4施工準備 53
4.2.5 材料的關鍵要求 55
4.2.6 作業條件 55
4.2.7 質量關鍵要求 55
4.3 工藝流程 56
4.3.1工藝流程圖 56
4.4 安全保護措施 56
4.5 環境保護措施 57
4.6 質量記錄 58
第五章 除塵器的防腐與維護 59
5.1防腐工藝的實施 59
5.1.1高壓空氣的制備 59
5.1.2工件噴砂處理 59
第六章 成本核算及投資 63
6.1工程建設投資核算 63
6.1.1 除塵器本體部分建造投資 63
6.2養護、維修投資核算 65
6.2.1 電耗費用 65
6.2.2 維修費用 65
第七章 經濟效益的評估 66
結 論 67
致 謝 68
參考文獻 69
摘 要
在工業生產特別是工業冶金過程中，產生大量的廢氣，這些廢氣的含塵濃度高，煙塵的危害性大，對環境造成嚴重的污染。同時，這些煙塵又有一定的回收和利用價值。因此，治理這些煙塵具有顯著的經濟效益和社會效益。
本設計針對工業生產的典型金屬冶煉的生產及場地等的具體情況，來設計布袋除塵器，并且使其排污情況達到國家相關的排放標準要求。而且，又要盡量滿足投資少、運轉費用低、操作方便、維護簡單的要求。
目前，國內外除塵設備的種類和型號較多，通過對它們的原理的分析以及性能的比較等，根據實際情況， 選出了對冶金爐廢氣控制的最佳方案。選用袋式除塵器并進行了設計計算確定了布袋的型號、尺寸、根數 ，對除塵器外部箱體、支架和灰斗等鋼結構部件也進行了設計，并計算了其重量和面積和列出材料的數量表。然后對除塵系統 進行長效防腐設計，根據現場，合理對各個部件進行了布局。
本設計選用的負壓吸灰的袋式除塵器在原有除塵器的基礎上，進行了一系列的改進。該除塵器節約成本， 擴大了除塵的效率，充分體現了節能理論，因而節能理論在本文將充分的從除塵效率特別是計算環節的角度加以論證。同時，冷卻塔的設計，降低了含塵氣體的溫度，保證了除塵器內布袋使用壽命，并合 理地利用了空間，對除塵和清灰達到了節能的設計和全自動化控制。
在本設計中，不但完成了對除塵系統總體的設計，而且強化細節，做到了所設計的除塵系統可以直接進行 加工、安裝、調試并投入使用。并對成本進行了投資預算.對所要的材料都進行了全部的統計。
關鍵詞： 大氣污染；袋式除塵器；節能；長效防腐
Abstract
In the process of metallurgy, a large amount of exhaust gas will be produced, which contains a high concentration of ash or dust. This kind of ash is very harmful and will pollute the environment. At the same time, the ash also has a value in reclamation and reuse. Therefore, it has a significant economic and social benefit to treat with it.
In this dpaper, according to the idiographic case of the producing and place etc. of smelting, it designs hop-pocket dust catcher and makes waste-excreting up to the relevant national standard criterion. What’s more, it should meet the requests of less investment, low running cost, conveniency for operation and easiness for maintenance as necessary as possible.
At present, there are relatively too many sorts and models of dust catcher at home and abroad, through the analyse of their theories and comparison of capability, according to the practical condition, we select the best scheme in calcium carbide furnace exhaust gas controlling. Having the hop-pocket dust catcher selected and the design calculation worked out, we fixed the model, size and root-number of the bag, and we have also designed the steel structure of the dust catcher’s several parts such as the exterior box, bracket and the ash- funnel etc. moreover, with its weight and area calculated. Then, towards the dust-removing system, we carried out the long-effective antisepticising design. According to the locale, we made a proper overall arrangement of each part, and checked on the economic and running cost at last.
This devise has a series of improvement. Compared with the original one，this hop-pocket dust catcher using a minus- pressure ash- absorbing technology. It will not only save the cost and enhance the dust-removing efficiency, because the design of cooling tower, it will also lower the temperature of the gas containing dust, in order to have the effective longevity of the bag guaranteed. Besides, the room can be used properly; the removing of dust and cleaning of ash are entirely automatically controlled.
In the paper, it has finished contriving the dust-removing system not only on the whole, furthermore, it has intensified the details of the device, so that it is able to carry out processing, installing, adjusting and been put in to effect directly. Moreover, the budget of investment and listed all the materials needed have worked out statistically.
keywords：air pollution, hop-pocket dust catcher, steel structure, long-effective antisepticising
...
